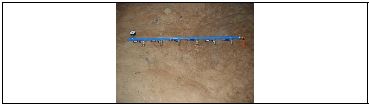

LPG MANIFOLDS

S.No	TITLE	LPG MANIFOLDS
1	Pipe line Size	½ " and ¾"
2	Hose Connections	3/8" BSP male threads
3	No. of outlet ( hose) connections	2, 3, 4 and 5. Can be built as per customer requirement.
4	Other Fittings	Duly fitted with Pressure Gauge (0-10bar), Individual control ball valve at every hose connection(optional)

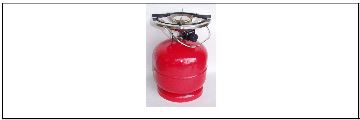

LPG Stoves

S.No	TITLE	DIRECT VAPOR PRESSURE BURNING STOVES
1	Inlet Connection	Needle valve fitted with an inlet male threads of M16X1.5
2	Outlet Connection	Fitted with Burner
3	Stove Base	Stainless Steel
4	Ignition	Automatic / Non-automatic

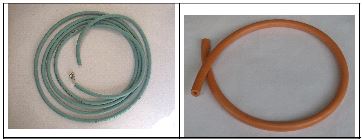

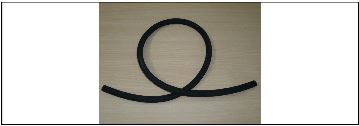

LPG Hoses/ Tubes

S.No	TITLE	LPG RUBBER TUBE
1	LPG Hoses Type 1	Low pressure as per BS 3212.
2	Inlet	6.4mm/8mm/10mm

PRODUCT CODE: 314

PRODUCT CODE: 316

ap09be1464

PRODUCT CODE: 1100 - 738

S.No	TITLE	Compact Variable Regulator With Child Safety Mechanism
1	Inlet Connection	Needle valve fitted with an inlet male threads of M16X1.5
2	Outlet Connection	Suitable for appliances with inlet threads M16X1.5
3	Lengths Available	300mm,500mm,750mm and 1000mm

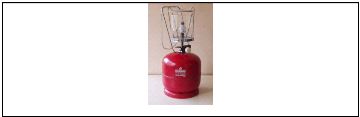

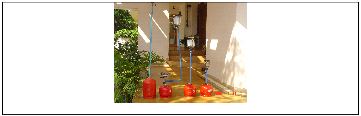

LPG Lanterns

S.No	TITLE	DIRECT VAPOR PRESSURE BURNING LANTERNS
1	Inlet Connection	Needle valve fitted with an inlet male threads of M16X1.5
2	Outlet Connection	Fitted with Lantern
3	Lantern Case	Stainless Steel
4	Ignition	Automatic / Non-automatic

PRODUCT CODE: 735/744/730

S.No	TITLE	HIGH PRESSURE REGULATORS
1	Inlet Connection	Dia 20mm/22mm/27mm
2	Outlet Connection	Suitable for hose of ID 8mm, Fig H52/H54/ H59 of EN15202
3	Pressure Adjustment Range	0-2 bar
4	Safety Features	Child Safety Mechanism
5	Standard	EN 16129

Note: Inlet and Outlet connections can customized according to customer requirements.

LPG Accessories
