Kabsons Group of Companies

Clip on Regulators

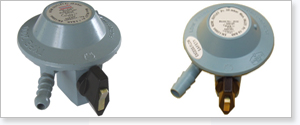

PRODUCT CODE: 136,143,733,150,131,145,740

S.No	TITLE	CLIP ON REGULATOR
1	Inlet Connections	Ø20mm (Fig G52), Ø21mm(Fig G53), Ø22mm(Fig G54), Ø27mm(Fig G59) of EN 15202
2	Outlet Connection	Nozzle. Towards the side of operating knob. As per Fig H50/H51 of EN 16129.
3	Standard / Specification	EN 16129
4	Safety Features	1.Child safety mechanism in the operating knob 2.Internal shut off valve (optional) 3.Excess flow shut off valve(optional)

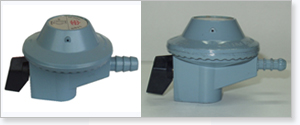

PRODUCT CODE: 773,127

S.No.	TITLE	CLIP ON REGULATOR – STANDARD
1	Inlet Connection	Ø20mm (Fig G52), Ø21mm(Fig G53), Ø22mm(Fig G54), Ø27mm(Fig G59) of EN 15202
2	Outlet Connection	Nozzle. Opposite side of operating knob. As per Fig H50/H51 of EN 16129.
3	Standard / Specification	EN 16129
4	Safety Features	Internal shut off valve (optional)

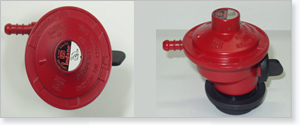

Quick Coupling Regulator

PRODUCT CODE: 105,102,101,104

S.No	TITLE	MULTI POINT HOLD REGULATORS
1	Inlet Connection	Ø20/21/22/25.6/27mm
2	Outlet Connection	As per Fig H50/H51 of EN 12864.
3	Standard / Specification	IS 9798:2017/EN 16129

PRODUCT CODE: 196

S.No.	TITLE	QUICK COULPING REGULATOR
1	Inlet Connection	Ø 16mm(Fig G.50 of EN 15202)
2	Outlet Connection	Nozzle 60° up from Horizontal – As per Fig H51 of EN 16129
3	Standard / Specification	EN 16129
4	Safety Features	Excess flow shut off valve (optional)

Online Regulator

PRODUCT CODE: 181

S.No	TITLE	ON LINE GAS REGULATOR FOR NATURAL GAS/LPG
1	Inlet Connection	Threaded connection ½ ” BSPT (F)
2	Outlet Connection	Threaded connection ½ ” BSPT (F)
3	Outlet Connection	1.6M³/h - 8M³/h
4	Standard / Specification	1.Over pressure shut off 2. Limited relief valve (optional) 3.Under pressure shut off with manual reset(optional)
5	Standard	EN 88-2

PRODUCT CODE: 189

S.No.	TITLE	ONLINE REGULATOR
1	Inlet Connection	1.M22x1.5(F) loose nut 2. SI 21.8X1.814-LH (F) loose nut 3. 3. ½”BSPT (F) loose Adaptor 4. As per customer requirement
2	Outlet Connection	1.M22x1.5(F) loose nut 2. SI 21.8X1.814-LH (F) loose nut 3. ½”BSPT (F) loose Adaptor 4. Nozzle 5. As per customer requirement
3	Application	LPG and Natural Gas
4	Safety Features	Limited relief valve (optional) Excess flow shut off valve with (Optional)

POL Regulator

PRODUCT CODE: 182

S.No	TITLE	POL REGULATOR – 4 Kg
1	Inlet Connection	5/8 LH POL ( Fig.G7 of EN 12864)
2	Outlet Connection	3/8” BSPT(F) OR ½”BSPT (F)
4	Safety Features	Limited relief valve (optional)

PRODUCT CODE: 705

S.No.	TITLE	POL REGULATOR – 1.5 Kg
1	Inlet Connection	0.880 NGO LH Rubber Nose -US POL ( Fig.10 of EN 12864)
2	Outlet Connection	Nozzle. As per Fig H 50 / H51of EN 12864
4	Safety Features	1. Excess flow shut off valve with manual reset at inlet 2. Limited relief valve (optional)

Camping Gas Regulator

PRODUCT CODE: 144,724

S.No	TITLE	CAMPING GAS REGULATOR
1	Inlet Connection	Threaded connections M16X1.5 (FigG3 of En15202) OR M14X1.5
2	Outlet Connection	Nozzle. Towards the side of operating knob. As per Fig H50 of EN 16129.
3	Standard / Specification	EN 16129
4	Safety Features	1. Child safety mechanism in the operating knob 2. Internal shut off valve (optional) 3. Excess flow shut off valve(optional)

PRODUCT CODE: 176,177

S.No.	TITLE	INTEGRAL GAS REGULATOR – STANDARD
1	Inlet Connection	Threaded connections M14X1.5/ M16x1.5
2	Outlet Connection	Nozzle. Opposite side of operating knob..
3	Standard / Specification	IS 9798
4	Safety Features	Internal shut off valve (optional)

Variable Regulator

PRODUCT CODE: 1100 - 738

S.No	TITLE	Compact Variable Regulator With Child Safety Mechanism
1	Inlet Connection	20mm (Fig G. 52 of EN 15202)
2	Outlet Connection	Suitable for Ø 8mm hose. (Fig H50 of EN 16129).
3	Standard / Specification	EN 16129
4	Safety Features	1.Child safety mechanism in the operating knob 2.Internal shut off valve (optional) 3.Excess flow shut off valve(optional)

PRODUCT CODE: 1300 - 109

S.No.	TITLE	Multi Point Hold Variable Regulator With Child Safety Mechanism
1	Inlet Connection	22mm (Fig G. 54 of EN 15202)
2	Outlet Connection	Suitable for Ø 8mm hose. (Fig H50 of EN 16129)
3	Standard / Specification	EN 16129
4	Safety Features	1.Child safety mechanism in the operating knob 2.Internal shut off valve (optional)

PRODUCT CODE: 1200 - 110

S.No.	TITLE	Multi Point Hold Regulator With Child Safety Mechanism
1	Inlet Connection	22mm (Fig G. 54 of EN 15202 )
2	Outlet Connection	Suitable for Ø 8mm hose. (Fig H50 of EN 16129)
3	Standard / Specification	EN 16129
4	Safety Features	1.Child safety mechanism in the operating knob 2.Internal shut off valve

PRODUCT CODE: 1200 - 111

S.No.	TITLE	Multi Point Hold Regulator with Child Safety Mechanism
1	Inlet Connection	22mm (Fig G. 54 of EN 15202)
2	Outlet Connection	Suitable for Ø 8mm hose. (Fig H50 of EN 16129)
3	Standard / Specification	EN 16129
4	Safety Features	1.Child safety mechanism in the operating knob 2.Internal shut off valve (optional) 3.Excess flow shut off valve(optional)

Natural Gas Regulator

PRODUCT CODE: 1400-183

S.No	TITLE	1.6M3/hr CAPACITY NATURAL GAS ON LINE REGULATOR WITH CONNECTORS
1	Inlet Connection	½” BSPT (F) adaptor
2	Outlet Connection	½” BSPT (F) adaptor
3	Standard / Specification	EN 88-2

PRODUCT CODE: 184

S.No.	TITLE	2.5M3/hr CAPACITY NATURAL GAS ON LINE REGULATOR WITH CONNECTORS
1	Inlet Connection	½” BSPT (F) adaptor
2	Outlet Connection	½” BSPT (F) adaptor
3	Standard / Specification	EN 88-2

PRODUCT CODE: 1400 - 717

S.No.	TITLE	1.6 M3/hr CAPACITY NATURAL GAS REGULATOR WITH ½” BSP LOOSE NUT ON BOTH THE SIDES AND ADOPTERS (FOR THE CONVENIENCE OF FITMENT IN THE LINE)
1	Inlet Connection	½” BSPT (F)
2	Outlet Connection	½” BSPT (F)
3	Standard / Specification	EN 88-2
4	Safety Features	1.Over Pressure Shut off 2.Creep Relief Valve 3.Under Pressure Shut-off

PRODUCT CODE: 1400 - 811

S.No.	TITLE	NATURAL GAS SERVICE REGULATOR (10 SCMH CAPACITY)
1	Inlet Connection	1” BSPT (F) Threads
2	Outlet Connection	1” BSPT (F) Threads
3	Standard / Specification	EN 88-2
4	Safety Features	1.Over Pressure Shut off 2.Creep Relief Valve 3.Under Pressure Shut-off

PRODUCT CODE: 1400 - 771

S.No.	TITLE	25 SCMH Capacity Natural Gas Service Regulator
1	Inlet Connection	1” BSPT (F) Threads
2	Outlet Connection	1” BSPT (F) Threads
3	Standard / Specification	EN 88-2
4	Safety Features	1.Over Pressure Shut off 2.Creep Relief Valve 3.Under Pressure Shut-off

High Pressure Regulator

PRODUCT CODE: 735/744/730

S.No	TITLE	HIGH PRESSURE REGULATORS
1	Inlet Connection	Dia 20mm/22mm/27mm
2	Outlet Connection	Suitable for hose of ID 8mm, Fig H52/H54/ H59 of EN15202
3	Pressure Adjustment Range	0-2 bar
4	Safety Features	Child Safety Mechanism
5	Standard	EN 16129

Note: Inlet and Outlet connections can customized according to customer requirements.

Marine Regulators

PRODUCT CODE: 766, 767 – LPG - Propane

S.No	TITLE	POL REGULATOR
1	Inlet Connection	5/8 LH POL ( Fig.G7) AND Threaded connection M20X1.5 ( Fig.H1) of EN 16239
2	Outlet Connection	½”BSPT (F)
3	Safety Features	Limited relief valve with vent nozzle

PRODUCT CODE: 763

S.No	TITLE	CAMPING GAS REGULATOR
1	Inlet Connection	Threaded connection M16X1.5 (FigG3) of EN15202
2	Outlet Connection	Nozzle. Towards the side of operating knob. As per Fig H50 of EN 16129.
3	Standard / Specification	EN 16129
3	Safety Features	1.Child safety mechanism in the operating knob 2.Internal shut off valve (optional) 3.Limited relief valve with vent nozzle

Meter Regulator / Governor

PRODUCT CODE: 185

S.No	TITLE	METER REGULATOR FOR NATURAL GAS/LPG
1	Inlet Connection	Threaded connection ¾” BSPT (F)
2	Outlet Connection	Threaded connection ¾” BSPT (F).(90º downward to the inlet)
3	Safety Features	Under pressure shut off with auto reset

PRODUCT CODE: 794

S.No	TITLE	6 M3/HR CAPACITY METER GOVERNOR
1	Inlet Connection	¾ BSPT (F) Threads
2	Outlet Connection	¾ BSPT (F) Threads

PRODUCT CODE: 1700 - 808 / 714

S.No	TITLE	10M3/HR CAPACITY METER GOVERNOR
1	Inlet Connection	¾ /1” BSPT (F) Threads as per ISO 7
2	Outlet Connection	¾ /1” BSPT (F) Threads as per ISO 7
3	Standard / Specification	EN 88-1

PRODUCT CODE: 816

S.No	TITLE	16 m³/h CAPACITY METER GOVERNOR
1	Inlet Connection	1 ” BSPT (F) Threads
2	Outlet Connection	1 ” BSPT (F) Threads
3	Standard / Specification	EN 88-1

PRODUCT CODE: 1700 - 779

S.No	TITLE	3 SCMH CAPACITY NATURAL GAS METER REGULATOR WITH UNDER PRESSURE SHUT OFF (UPSO) DEVICE
1	Inlet Connection	¾” NPT brass loose nut with washer
2	Outlet Connection	¾” NPT brass loose nut with washer
3	Standard / Specification	EN88 -1
4	Safety Features	1.Under pressure shut off

PRODUCT CODE: 721

S.No	TITLE	6 M3/hr CAPACITY METER GOVERNOR
1	Inlet Connection	¾ BSPT (F) Threads
2	Outlet Connection	¾ BSPT (F) Threads
3	Standard / Specification	IGEM/GM/PRS/3

PRODUCT CODE: 815

S.No	TITLE	16 M3/HR CAPACITY METER GOVERNOR
1	Inlet Connection	1” BSPT (F) Threads
2	Outlet Connection	1” BSPT (F) Threads
3	Standard / Specification	EN88 - 1

PRODUCT CODE: 858

S.No	TITLE	25M³/h / 40M3/h /65M3/h / 100M3/h CAPACITY METER GOVERNOR (for G16/G25/G40/G65 Gas Meter)
1	Inlet Connection	2 ” BSPT (F) Threads as per BS EN 10226
2	Outlet Connection	2 ” loose nut with washer as per BS 746 suitable to connect directly to gas meter with 2” BS 746( male) threads
3	Standard / Specification	EN88 - 1
