S.No |
TITLE |
SELF CLOSING VALVES WITH DUST
PLUG WITHOUT PRESSURE RELIEF |
1 |
Inlet Connection |
¾”NGT -14 TPI, M26.2X2, W19.8, W28.8 ( Sediment tube – optional) |
2 |
Outlet Connection |
Ø20mm (Fig G52), Ø21mm(Fig G53), Ø22mm(Fig G54), Ø27mm(Fig G59), of EN 15202 |
3 |
Specification |
EN 14245 |
PRODUCT CODE: 282/228/227/226
S.No. |
TITLE |
SELF CLOSING VALVES WITH
PRESSURE RELIEF |
1 |
Inlet Connection |
¾”NGT -14 TPI, M26.2X2, W19.8,
W28.8( Sediment tube – optional) |
2 |
Outlet Connection |
Ø16mm (Fig G.50),Ø20mm (Fig G52),
Ø21mm(Fig G53), Ø22mm(Fig G54),
Ø27mm(Fig G59, Bayonet(Fig G.61) of
EN 15202 |
3 |
Pressure Relief Set at |
26± 4 bar |
4 |
Specification |
EN 14245 |
S.No. |
TITLE |
SELF CLOSING VALVES WITH DUST
PLUG WITHOUT PRESSURE RELIEF |
1 |
Inlet Connection |
¾”NGT -14 TPI, M26.2X2, W19.8, W
28.8 ( Sediment tube – optional) |
2 |
Outlet Connection |
Ø20mm (Fig G52), Ø21mm(Fig G53),
Ø22mm(Fig G54), Ø27mm(Fig G59), of
EN 15202 |
4 |
Specification |
EN 14245 |
S.No. |
TITLE |
SELF CLOSING VALVES WITH
PRESSURE RELIEF AND DUST
PLUG |
1 |
Inlet Connection |
¾”NGT -14 TPI, M26.2X2, W19.8, W
28.8( Sediment tube – optional) |
2 |
Outlet Connection |
Ø20mm (Fig G52), Ø21mm(Fig G53),
Ø22mm(Fig G54), Ø27mm(Fig G59), of
EN 15202 |
3 |
Pressure Relief Set at |
26± 4 bar |
4 |
Specification |
EN 14245 |
S.No. |
TITLE |
SELF CLOSING VALVE WITH
PRESSURE RELIEF FOR CAMPING
CYLINDERS |
1 |
Inlet Connection |
M22X1.25 |
2 |
Outlet Connection |
M14x1.5/M 16X1.5 |
3 |
Pressure Relief Set at |
22-30 bar |
4 |
Specification |
EN 14245 |
S.No. |
TITLE |
BAYONET SELF CLOSING VALVE
WITH OR WITHOUT PRESSURE
RELIEF VALVE |
1 |
Inlet Connection |
¾”NGT -14 TPI, M26.2X2, ( Sediment
tube – optional) |
2 |
Outlet Connection |
Bayonet connection(Fig G.61) of EN
15202 |
3 |
Pressure Relief Set at |
26± 4 bar |
4 |
Specification |
EN 14245 |

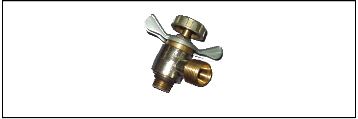

S.No. |
TITLE |
CAMPING GAS VALVE |
1 |
Inlet Connection |
M22X1.25 |
2 |
Outlet Connection |
M16x1.5 (Fig .G3) of EN15202 |
3 |
Spanner |
Splines or Hexagon |
4 |
Specification |
EN 14245 |
